Product Design & Specifications
` Dimensions: 5.95m (L) × 3.3m (W) × 3.3m (H) – optimizing transportability under Australian road regulations.
` Structural Highlights:
` Clean white exterior cladding (reflective thermal-coated panels) to reduce heat absorption.
` Distinctive pitched roof (triangular profile) ensuring rapid rainwater runoff—critical for monsoon-prone regions.
` Elevated foundation with corrosion-resistant steel stumps for airflow and pest prevention.

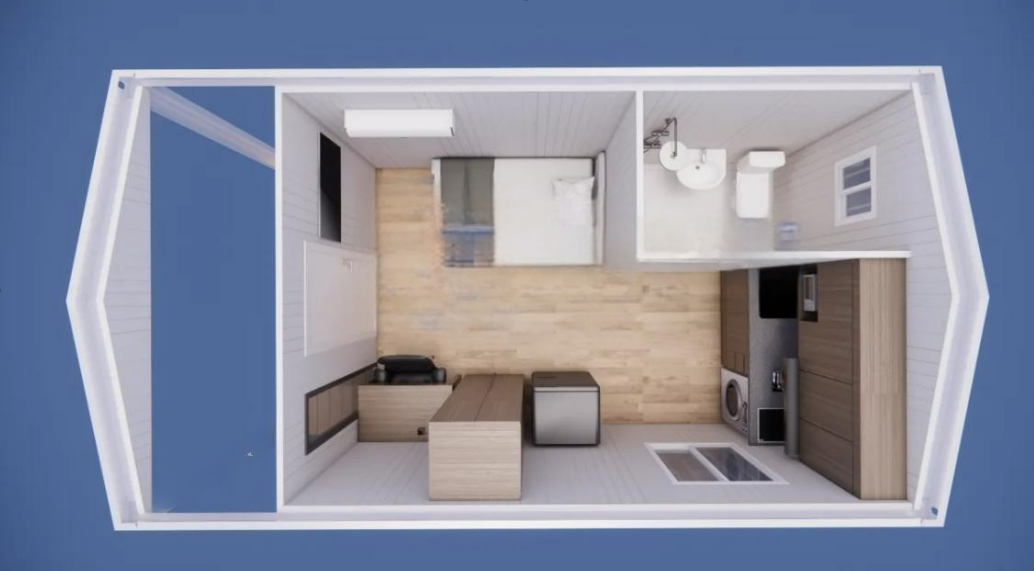

Interior Layout
The 19.6㎡ interior is configured into three functional zones:
1. Sleeping Area: Single bed (built-in storage underneath) positioned to capture morning light via side window.
2. Wet Unit: Compact bathroom with water-saving shower, toilet, and vanity; integrated plumbing pre-tested before delivery.
3. Living/Cooking Space:
` Galley-style kitchenette with induction cooktop, mini-fridge, and composite stone countertop.
` Foldable wall-mounted desk adjacent to large sliding glass door, enabling workspace conversion.
Outdoor Integration

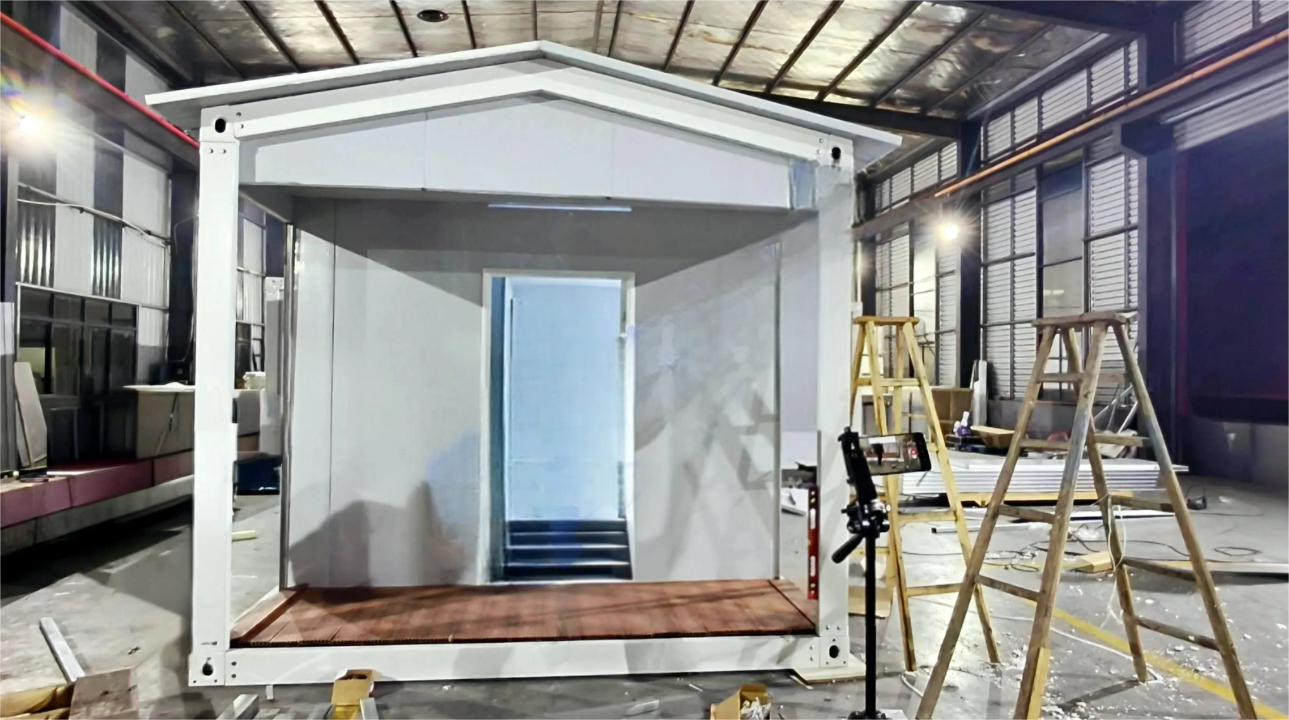

` Front Deck: 3.3m × 1m freestanding deck with FSC-certified (pressure-treated timber), finished with anti-slip coating.
` Design Logic: The deck extends living space visually, creates a transitional buffer zone, and elevates the structure above ground moisture. Roof overhang (0.8m) shelters 70% of deck area.
